Prophesee Evaluation Kits are your perfect gateway to Event-Based Vision.
To meet your evaluation needs, we offer two types of evaluation kits – USB Cameras for plug-and-play PC evaluation and Embedded Starter Kits for building custom embedded systems.
They feature the world’s smallest and most power-efficient Event-based vision sensor GenX320 (320x320px), and the breakthrough IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE.
Prophesee also offers development access to the most extensive Event-Based Vision software suite available to date, the largest open-source platform as well as extensive support and documentation resources.
PRODUCT RANGE
USB Cameras
Plug-and-play Metavision® USB event cameras for PC evaluation, rapid prototyping and validation.
With IMX636 realized in collaboration between Sony and PROPHESEE, and new GenX320, world’s smallest and most power-efficient Event-based vision sensor.
Embedded Starter Kits
SBC based development platforms for prototyping and development of embedded systems and applications.
With the new GenX320, world’s smallest and most power-efficient Event-based vision sensor.
USB CAMERAS

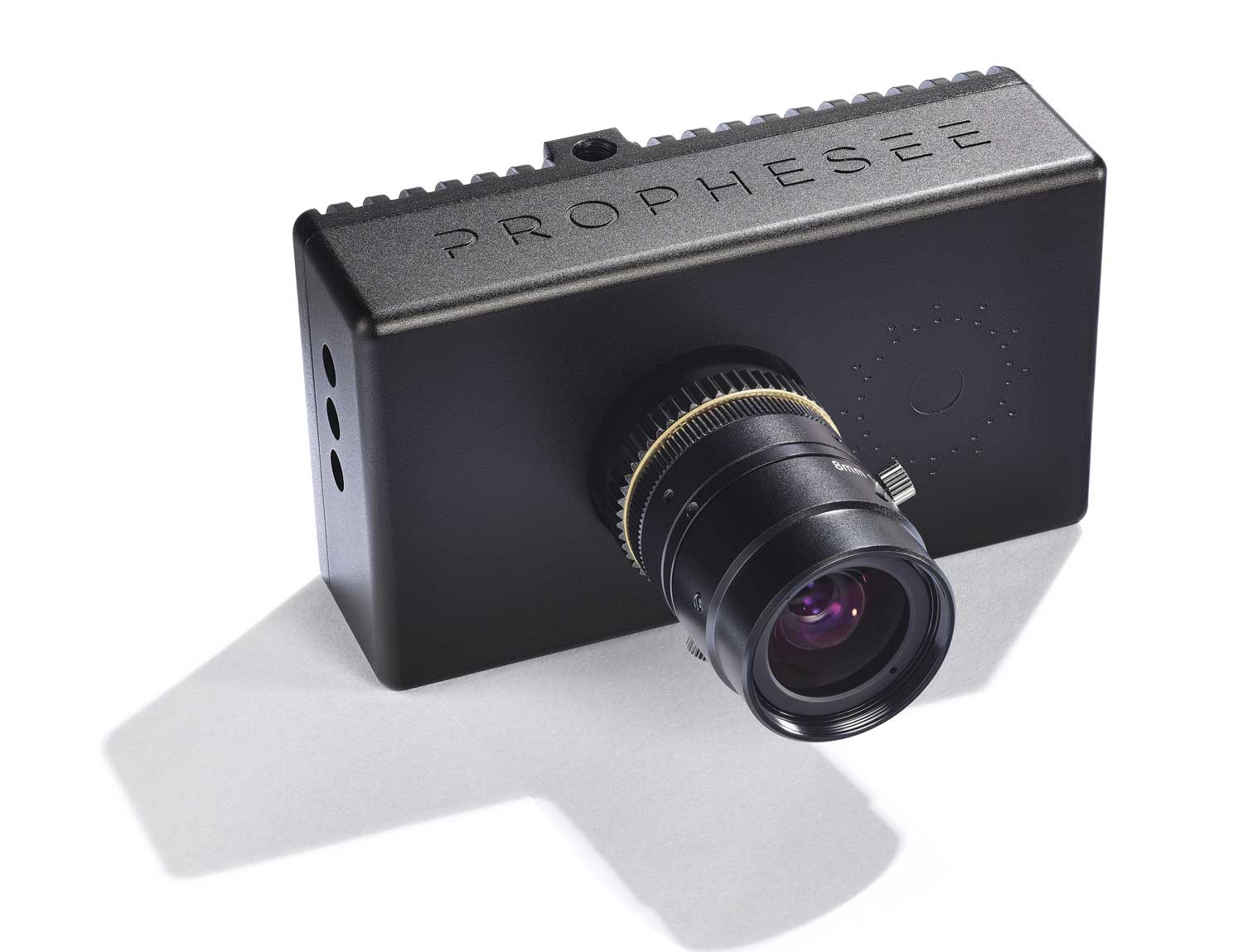

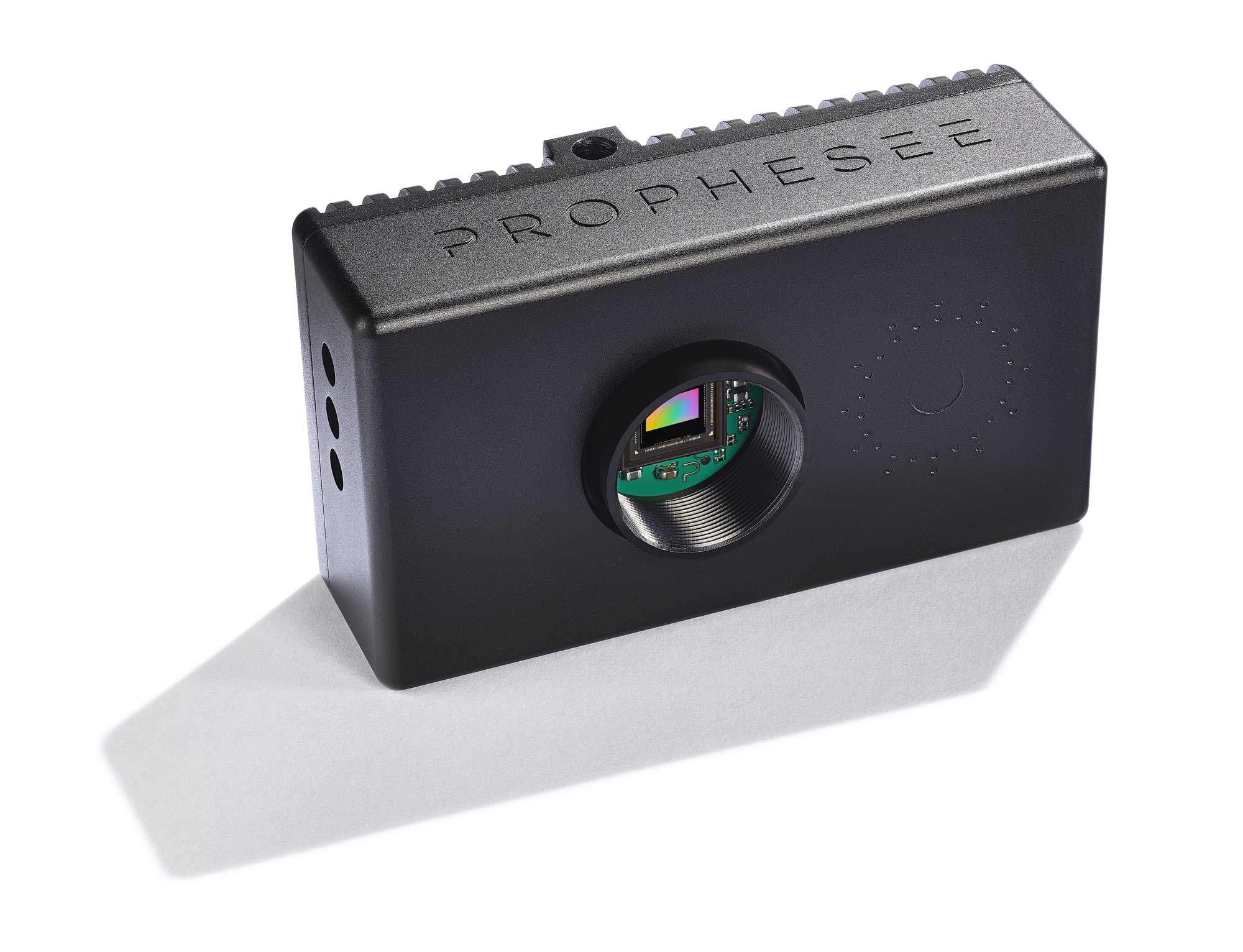

Prophesee Embra™ HD USB
Compact, industrial-grade HD Event-Based Vision exploration kit for real-world prototyping and validation.
With IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE.
KEY FEATURES
- Latency @1k lux: <100 μs
- Ultra-compact and light: 29x29x17mm, weighing just 61g
- Die-cast nickel-plated zinc camera body (IP30 rated)
- USB 3.0 Micro-B connectivity
- Easy to embed: 4x M3 bottom fixing points
- Interchangeable C-mount optics
- USB Power: 5 V, max. 400 mA
- Trigger and synchronization connectivity
- Available as a standalone camera or with one-seat development access to Metavision® SDK5 PRO*
SUPPORTED SENSORS
- IMX636 (1280x720px), realized in collaboration between Sony and PROPHESEE
SUPPORT
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
NEW Metavision® EVK3 – GENX320
Board level Metavision® Evaluation Kit, ideal for first hands-on evaluation.
With the new GenX320 (320x320px), world’s smallest and most power-efficient Event-based vision sensor
KEY FEATURES
- Latency @1k lux: <150 μs
- USB 3.0 Micro-B and SMA connectivity
- Maximum system power 4.5W, powered via USB
- Optical Flex module / COB module and S mount versions available
- Synchronization interface
- Access to the most comprehensive Event-Based Vision software toolkit: Metavision® SDK5 PRO*
SUPPORTED SENSORS
- GenX320 (320x320px) (Sensor board with C-mount optics)
- GenX320 (320x320px) CM2 (Flex Optical Module with 104° DFoV f/2.4 M6 lens)
SUPPORT
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
*Includes one development license seat. Commercial deployment is available through a separate commercial license.
EMBEDDED STARTER KITS
NEW Prophesee Starter Kit GenX320 for Raspberry Pi 5
Capture and analyze high-speed, low-latency event data for custom embedded vision solutions in applications such as robotics, drones, industrial automation on the widely-adopted Raspberry Pi 5 board (available from Raspberry Pi).
Features the new GenX320 (320x320px), world’s smallest and most power-efficient Event-based vision sensor.
KEY FEATURES
- Prophesee GenX320 development kit module for Raspberry Pi 5 board
- The sensor module connects directly to Raspberry Pi 5 via the camera connector MIPI CSI-2 (D-PHY) interface
- Integrates the GenX320 1/5 inch format Event-based vision sensor
SUPPORTED SENSORS
- GenX320 Metavision® sensor (320x320px)
AVAILABLE VARIANTS
- M12 mount, FOV 76° lens
- M6 mount, FOV 104° lens
SUPPORT
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more)
- OpenEB support with Python and C++ APIs
- Access to drivers, data recording, replay and visualization tools on Github.
ADVANCED TOOLKIT
Complementary access to an advanced set of tools composed of a support portal, drivers, open-source platform, SDK, tutorials, reference data and much more.
We are sharing an advanced toolkit so you can start developing your own vision.
THE MOST COMPREHENSIVE EVENT-BASED VISION SOFTWARE SUITE
64 algorithms, 105 code samples and 17 tutorials in total to let you evaluate and design your own Metavision product.
SUPPORT RESOURCES
With a USB camera purchase, get access to our privileged Knowledge Center, including over 110 articles, application notes, in-depth technology discovery material and step-by-step guides.
OPEN SOURCE ARCHITECTURE
Metavision SDK is based on an open source architecture, unlocking full interoperability between our software and hardware devices and enabling a fast-growing Event-Based community.
EXTENSIVE DOCUMENTATION
With 300+ pages of regularly updated content on docs.prophesee.ai, programming guides, reference data, detailed recommendations, get a head start on your application development.
