PROPHESEE stands at the forefront of neuromorphic vision sensing technologies with leading Metavision® event-based sensors

Now ready for mass deployment

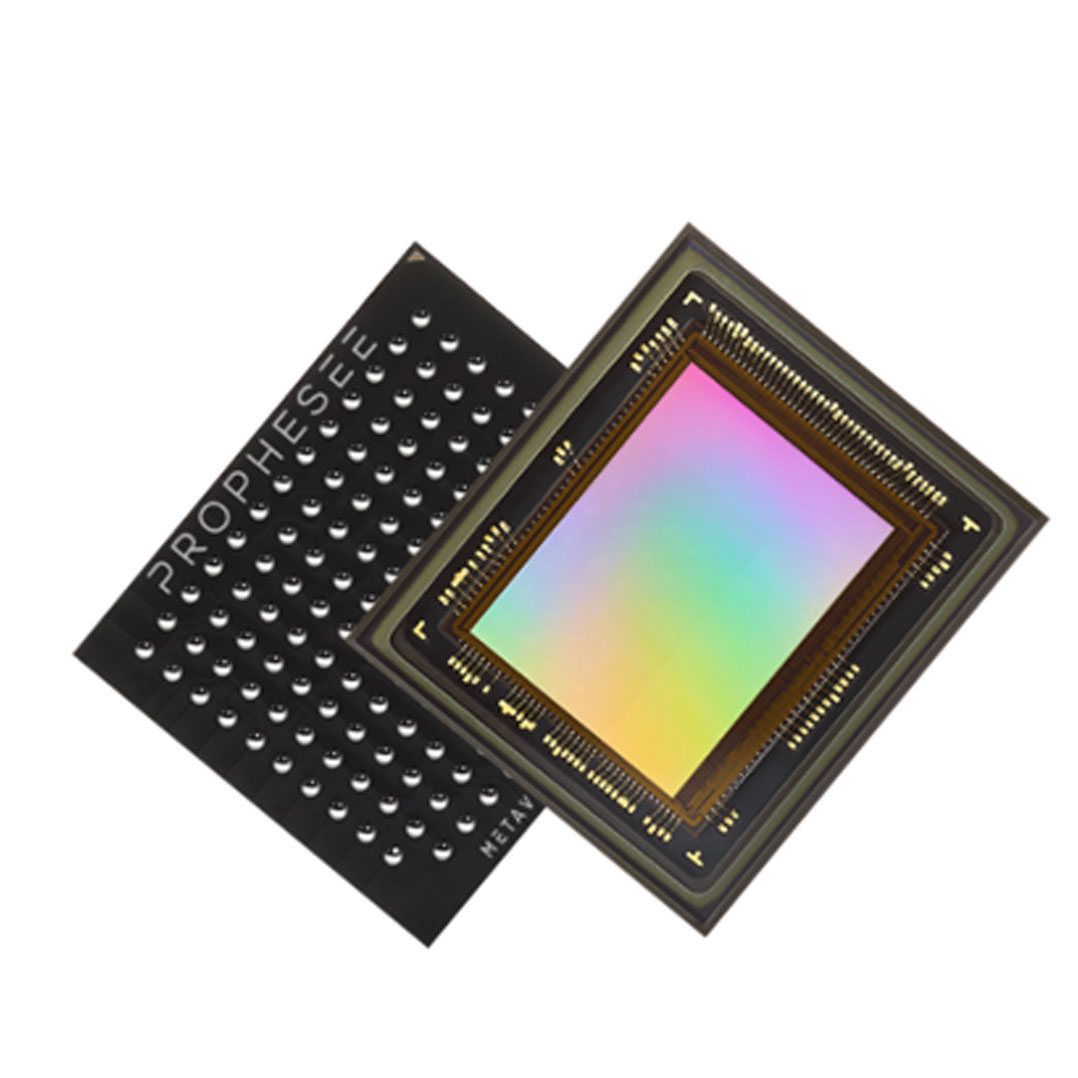

GenX320 Metavision® event-based sensor

NEW

Metavision® sensor
GENX320

  • 320×320 px
  • Embedded – Low Power
  • IoT – AR/VR – Safety

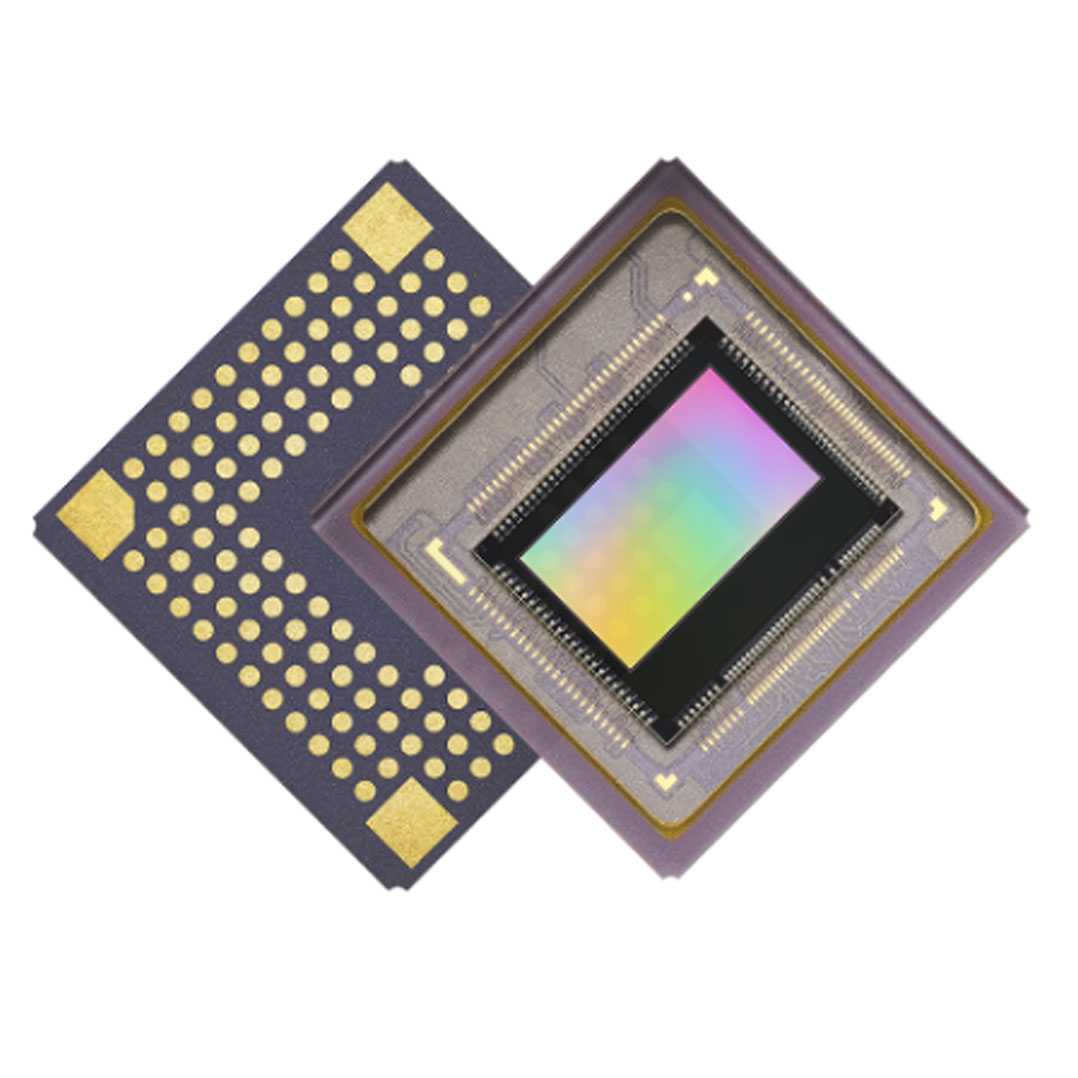

IMX636 Metavision® event-based sensor

Metavision® sensor
IMX636

  • 1280×720 px
  • Ultra High Speed
  • IoT- Industrial – Mobile

IMX646 Metavision® event-based sensor

Metavision® sensor
IMX646

  • 1280×720 px
  • High-Speed
  • IoT – Industrial – Safety

GenX320 Metavision® event-based sensor

NEW

Metavision® sensor
GENX320

  • 320×320
  • Embedded – Low Power
  • IoT – AR/VR – Safety
IMX636 Metavision® event-based sensor

Metavision® sensor
IMX636

  • HD
  • Ultra High Speed
  • IoT- Industrial – Mobile

IMX646 Metavision® event-based sensor

Metavision® sensor
IMX646

  • HD
  • High-Speed
  • IoT – Industrial – Safety

Metavision® event-based sensor Pixel_Intelligence

PIXEL INTELLIGENCE

Bringing intelligence to the very edge

Inspired by the human retina, at the heart of Prophesee patented Event-Based Metavision sensors, each pixel embeds its own intelligence processing enabling them to activate themselves independently, triggering events.

Metavision® event-based sensor Speed

SPEED

>10k fps Time-Resolution Equivalent

There is no framerate tradeoff anymore. Take full advantage of events over frames and reveal the invisible hidden in hyper fast and fleeting scene dynamics.



Metavision® event-based sensor Dynamic_Range

DYNAMIC RANGE

>120dB Dynamic Range

Achieve high robustness even in extreme lighting conditions. With event-based Metavision sensors you can now perfectly see details from pitch dark to blinding brightness in one same scene, at any speed.

Metavision® event-based sensor Low_Light

LOW LIGHT

0.08 lx Low-Light Cutoff

Sometimes the darkest areas hold the clearest insights. Metavision enables you to see events where light almost does not exist, down to 0.08 lx.

Metavision® event-based sensor Data_Efficiency

DATA EFFICIENCY

 10 to 1000x less data

With each pixel only reporting when it senses movement, event-based Metavision sensors generate on average 10 to 1000x less data than traditional image-based ones.

REVEAL THE INVISIBLE

BETWEEN THE FRAMES

FRAME-BASED VISION

In a traditional frame-based sensor, the whole sensor array is triggered at a pre-defined rhythm, regardless of the actual scene’s dynamics.

This leads to the acquisition of large volumes of raw, undersampled or redundant, data.

EVENT-BASED VISION

 In Prophesee’s patented Event-Based sensor, each pixel intelligently activates itself depending on the contrast change (movement) it detects.

This enables the acquisition of only essential motion information, continuously. There is no framerate anymore.

On the LEFT, a simulation of Frame-Based Vision running at 10fps. This approach leverages traditional cinema techniques and records a succession of static images to represent movement. Between these images, there is nothing, the system is blind by design.

On the RIGHT, the same scene recorded using Event-Based Vision. There is no gap between the frames, because there are no frames anymore. Instead, a continuous stream of essential information dynamically driven by movement, pixel by pixel.

This drastically reduces the power, latency and data processing requirements imposed by traditional frame-based systems.

ADVANCED TOOLKIT

every With Prophesee USB evaluation kits purchase comes a complementary access to an advanced toolkit composed of an online portal, drivers, data player and SDK PRO.

We are sharing an advanced toolkit so you can start building your own vision.

METAVISION SDK PRO

Experience first hand the new performance standards set by Event-Based Vision by interacting with more than 64 algorithms, 105 code samples and 17 tutorialsthe industry’s widest selection available to date.
