The high-performance Event-based vision
starter kit for Raspberry Pi 5
Delivering high-speed, low-latency event data directly to Raspberry Pi 5, this kit enables you to start capturing and analyzing input stream for custom embedded vision solutions in applications such as robotics, drones, industrial automation, and more.
Leverage the capabilities of GenX320 – the smallest and most power-efficient Event-based vision sensor in the world:
<150 μs
Latency at 1000 lux
~10,000 fps
Equivalent event rate
<50 mW
Sensor power consumption
>140 dB
Dynamic Range
Prophesee Starter Kit GenX320 for Raspberry Pi 5
High-performance and low-latency Event-based vision system built on Raspberry Pi 5
With the new GenX320 – world’s smallest and most power-efficient Event-based vision sensor.

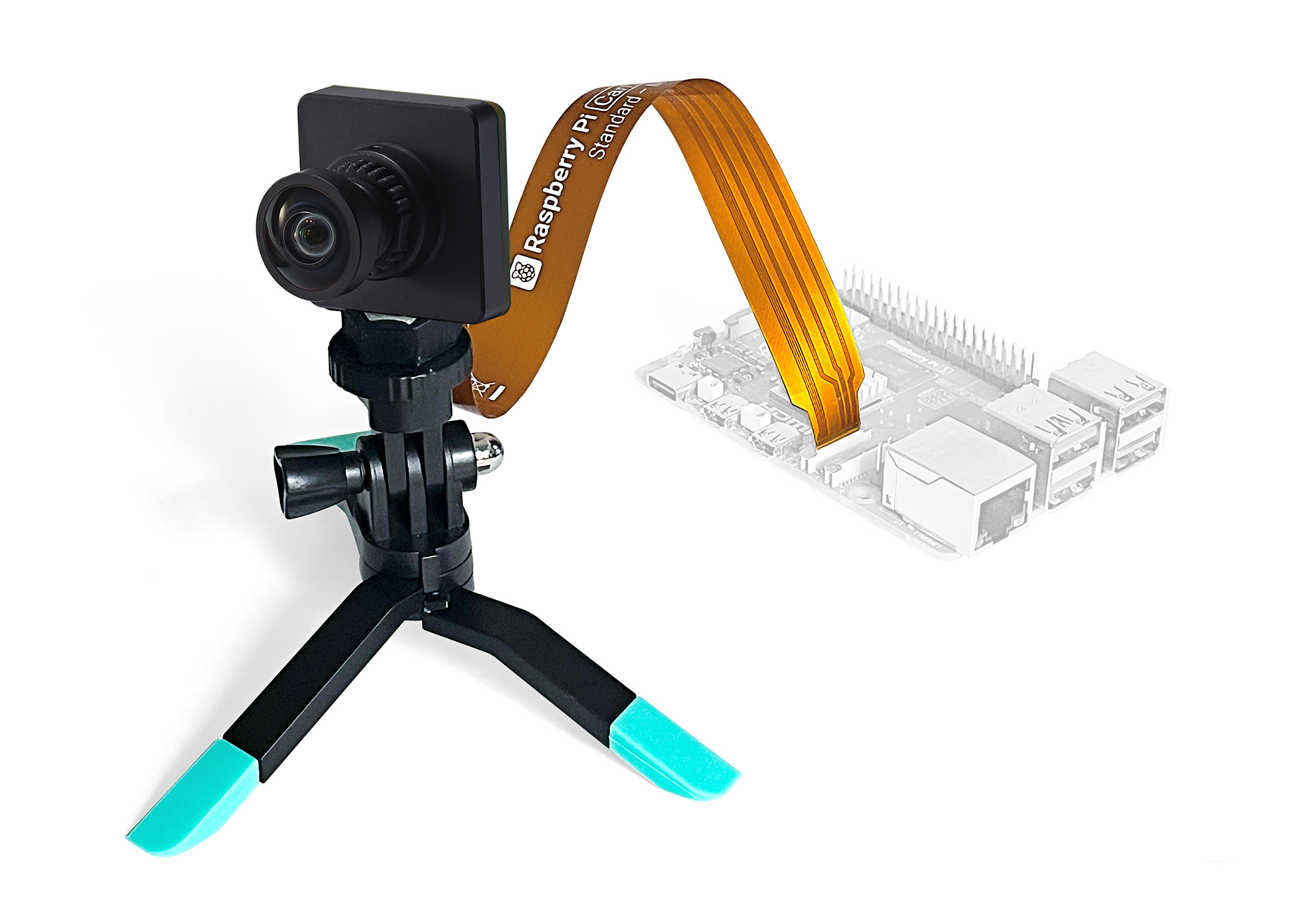

M12 mount, FOV 76° lens

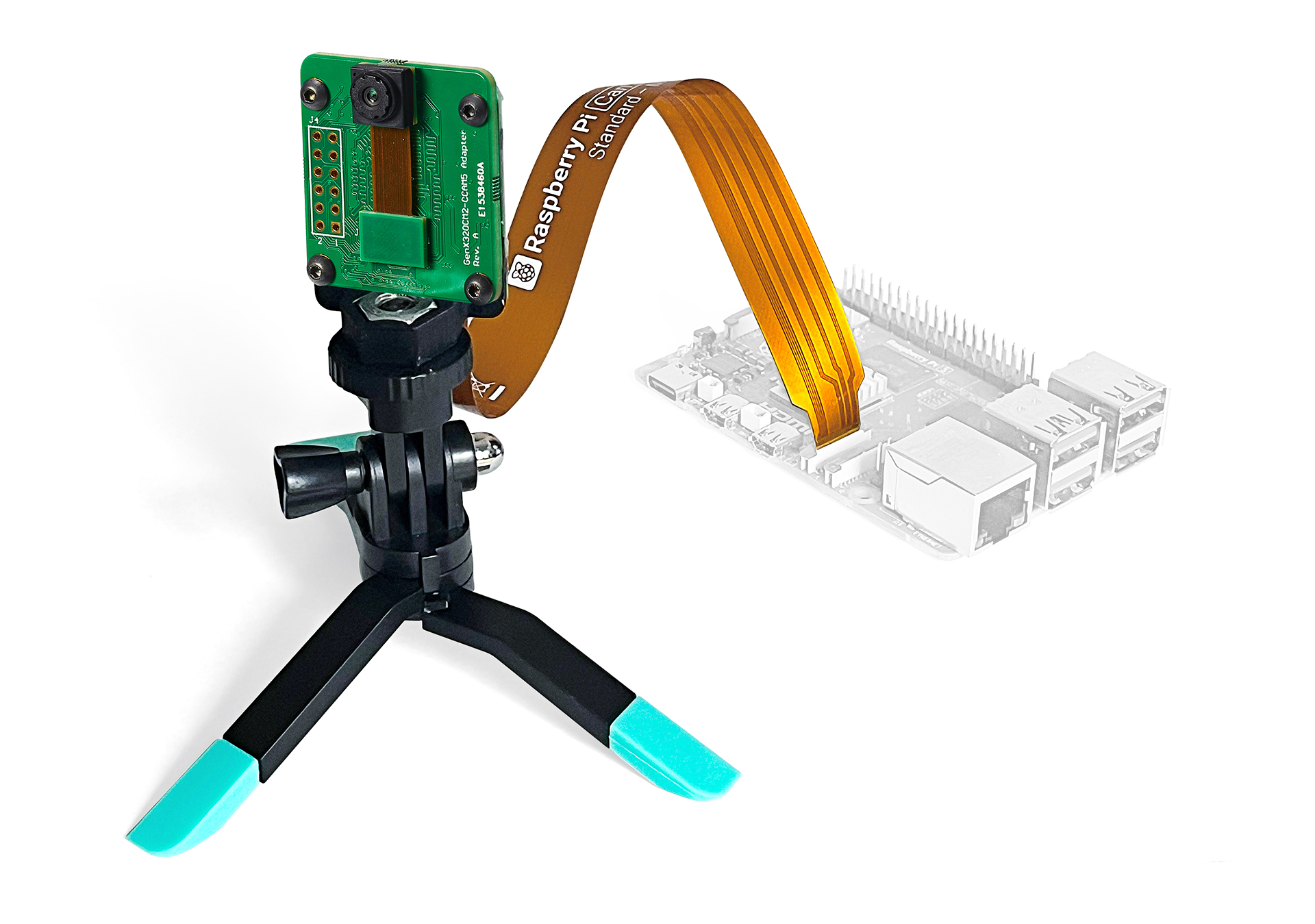

M6 mount, FOV 104° lens
KEY FEATURES
- Prophesee GenX320 development kit module for Raspberry Pi 5 board
- The sensor module connects directly to Raspberry Pi 5 via the camera connector MIPI CSI-2 (D-PHY) interface
- Integrates the GenX320 1/5 inch format Event-based vision sensor:
- 320×320 array of 6.3μm contrast detection pixels
- Ultra high-speed event data output (equivalent to >10kfps time resolution) with 1μs-precision time stamping
- Low latency <150 μs at 1,000 lux, <1,000 μs at 5 lux
- Native high dynamic range >140 dB
- Low power consumption <50 mW
SUPPORTED SENSORS
AVAILABLE VARIANTS
- M12 mount, FOV 76° lens
- M6 mount, FOV 104° lens
SUPPORT
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more)
- OpenEB support with Python and C++ APIs
- Access to drivers, data recording, replay and visualization tools on GitHub
Markets and applications
Drones
- Detection and Tracking
- Obstacle Avoidance
- Real-Time SLAM
- GPS-Denied Navigation
Industrial IoT
- 3D Scanning
- Vibration Monitoring
- Spatter Tracking
- High-Speed Defect Detection
Surveillance
- Fall Detection
- Intrusion Monitoring
- Smart Office
- Customer Analytics
…and many others
Advanced Toolkit
Complementary access to an advanced set of tools composed of a support portal, drivers, open-source platform, tutorials, reference data and much more.
We are sharing an advanced toolkit so you can start building your own vision.
SUPPORT RESOURCES
With the Prophesee Starter Kit purchase, get access to our privileged Knowledge Center, including technical application notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more.

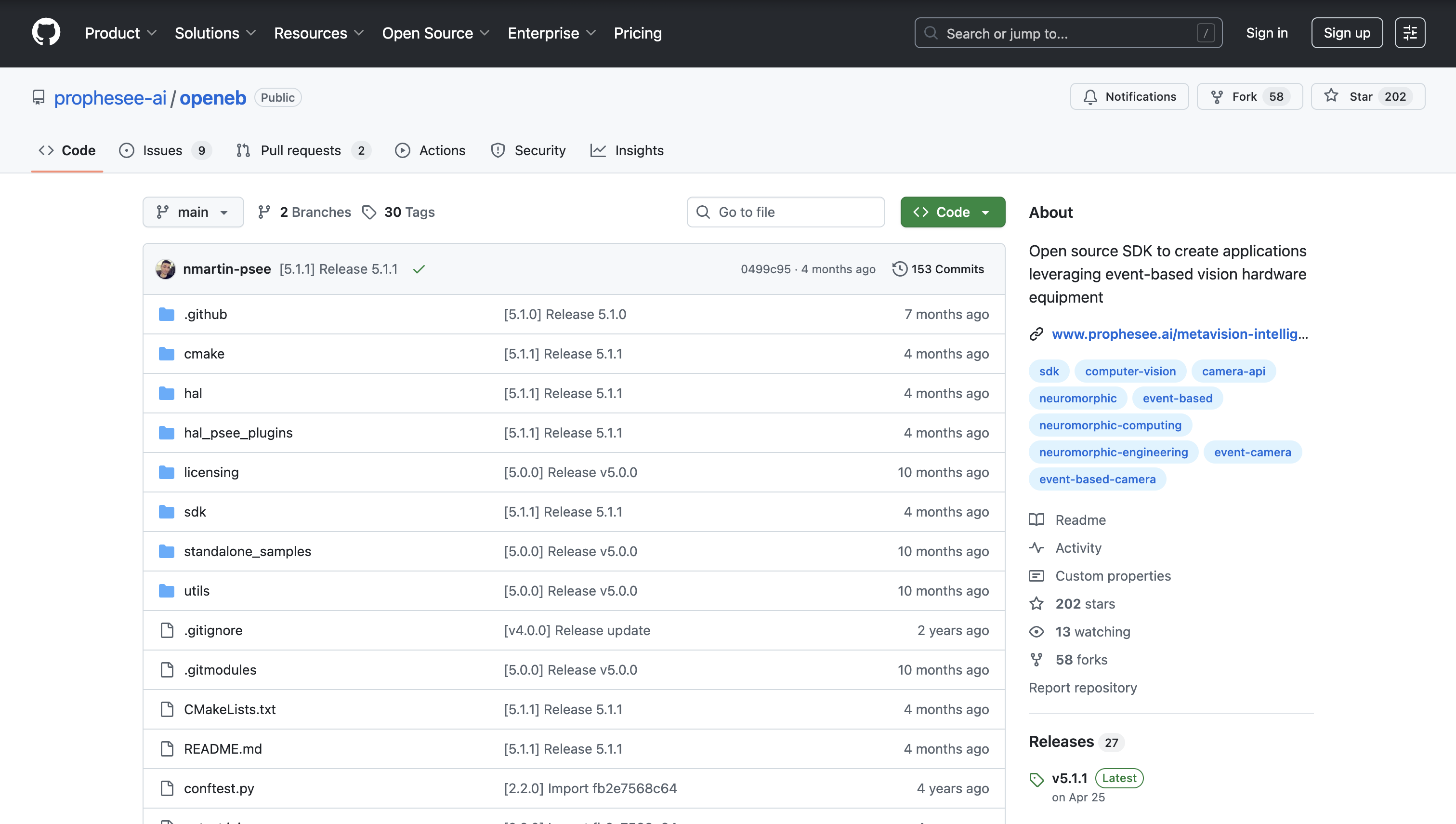

OPENEB
Get a head start on your product development with OpenEB support with Python and C++ APIs. Gain access to drivers, data recording, replay and visualization tools at github.com/prophesee-ai/openeb.
