Prophesee Evaluation Kits are your perfect gateway to Event-Based Vision.
To meet your evaluation needs, we offer two types of evaluation kits – USB Cameras for plug-and-play PC evaluation and Embedded Starter Kits for building custom embedded systems.
They feature the world’s smallest and most power-efficient Event-based vision sensor GenX320 (320x320px), and the breakthrough IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE.
Prophesee also offers unlimited evaluation access to the most extensive Event-Based Vision software suite available to date, the largest open-source platform as well as extensive support and documentation resources.
PRODUCT RANGE
USB Cameras
Plug-and-play Metavision® USB event cameras, ideal for first hands-on PC evaluation.
With IMX636 realized in collaboration between Sony and PROPHESEE, and new GenX320, world’s smallest and most power-efficient Event-based vision sensor.
Embedded Starter Kits
Comprehensive MCU, and SBC based development platforms for prototyping and development of embedded systems and applications.
With the new GenX320, world’s smallest and most power-efficient Event-based vision sensor.
USB CAMERAS
Metavision® EVK4 – HD
Ultra-light and compact HD Metavision® Evaluation Kit built to endure field testing conditions.
With IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE.
KEY FEATURES
- Latency @1k lux: <220 μs
- Ultra-compact and light: 30x30x36mm, weighing just 40g
- Built to endure (IEC certifications for T° / Heat / Shocks / Electrostatic discharge)
- USB 3.0 Type-C connectivity
- High Quality Aluminum alloy casing
- Easy to embed: 4x M2 front + 2x M2.6 back fixing points
- C/CS mount
- Maximum system bandwidth: 1.6 Gbps
- Maximum system power 1.5W, powered via USB
- Synchronization interface
- Access to the most comprehensive Event-Based Vision software toolkit: Metavision® SDK5 PRO*
SUPPORTED SENSORS
- IMX636 (1280x720px), realized in collaboration between Sony and PROPHESEE
SUPPORT
- Up to 2 hours onboarding support (first 2 months)
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
NEW Metavision® EVK3 – GENX320
Board level Metavision® Evaluation Kit, ideal for first hands-on evaluation.
With the new GenX320 (320x320px), world’s smallest and most power-efficient Event-based vision sensor
KEY FEATURES
- Latency @1k lux: <150 μs
- USB 3.0 Micro-B and SMA connectivity
- Maximum system power 4.5W, powered via USB
- Optical Flex module / COB module and S mount versions available
- Synchronization interface
- Access to the most comprehensive Event-Based Vision software toolkit: Metavision® SDK5 PRO*
SUPPORTED SENSORS
- GenX320 (320x320px) (Sensor board with C-mount optics)
- GenX320 (320x320px) CM2 (Flex Optical Module with 104° DFoV f/2.4 M6 lens)
SUPPORT
- Up to 2 hours onboarding support (first 2 months)
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
*For every USB camera purchased after Oct 7, 2024. Includes one development license seat.
Commercial deployment is available through a separate commercial license.
EMBEDDED STARTER KITS

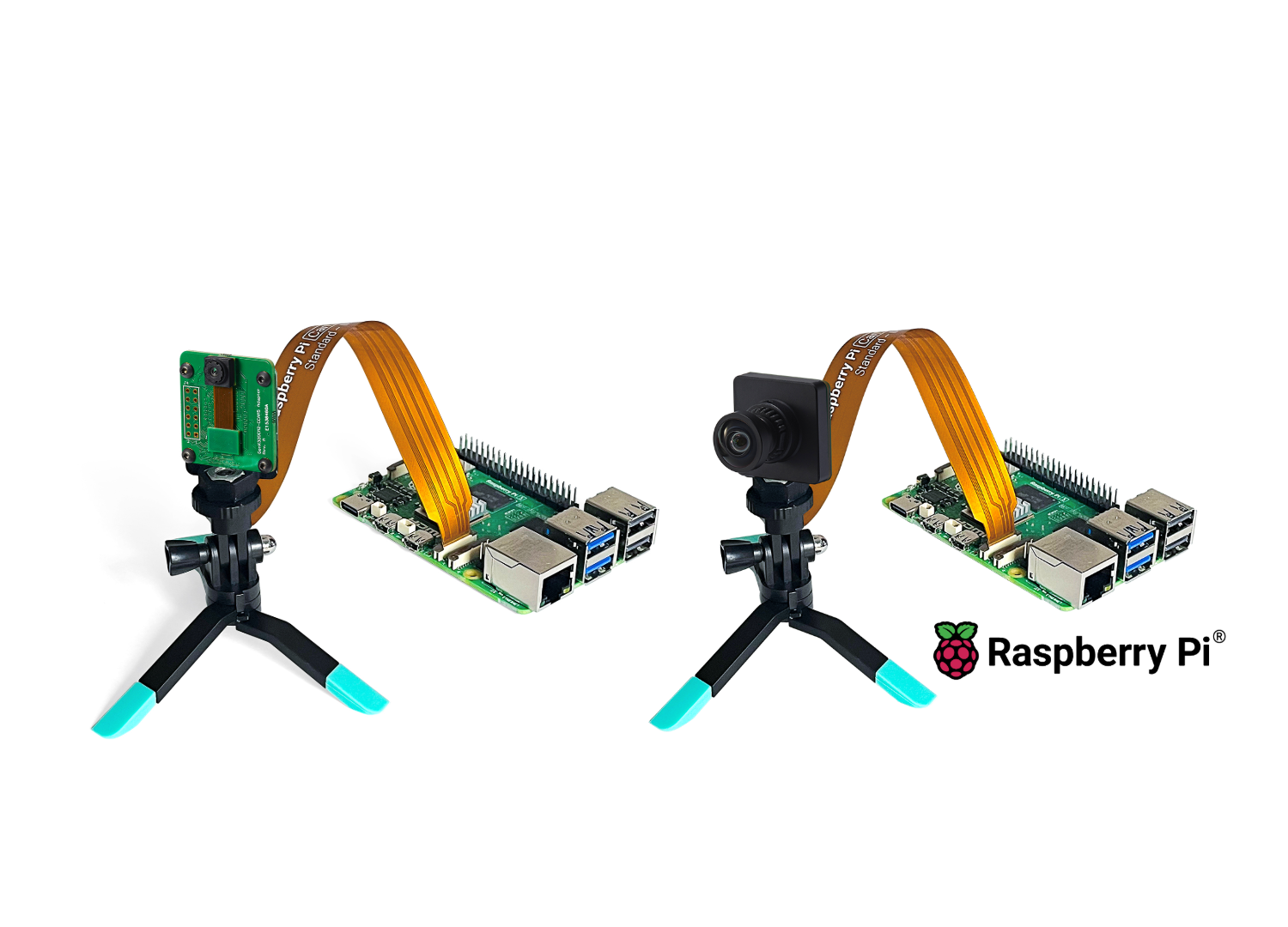

NEW Prophesee Starter Kit GenX320 for Raspberry Pi 5
Capture and analyze high-speed, low-latency event data for custom embedded vision solutions in applications such as robotics, drones, industrial automation on the widely-adopted Raspberry Pi 5 board (available from Raspberry Pi).
Features the new GenX320 (320x320px), world’s smallest and most power-efficient Event-based vision sensor.
KEY FEATURES
- Prophesee GenX320 development kit module for Raspberry Pi 5 board
- The sensor module connects directly to Raspberry Pi 5 via the camera connector MIPI CSI-2 (D-PHY) interface
- Integrates the GenX320 1/5 inch format Event-based vision sensor
SUPPORTED SENSORS
- GenX320 Metavision® sensor (320x320px)
AVAILABLE VARIANTS
- M12 mount, FOV 76° lens
- M6 mount, FOV 104° lens
SUPPORT
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more)
- OpenEB support with Python and C++ APIs
- Access to drivers, data recording, replay and visualization tools on Github.
Metavision Starter Kit –
STM32F7 (GenX320)
Flexible development kit optimized for plug-and-play use with STM32-F7 MCU discovery kit (available from ST Microelectronics). Includes software to enable low-power and low end-to-end latency event processing for embedded vision systems.
Features the new GenX320 (320x320px), world’s smallest and most power-efficient Event-based vision sensor ideal for edge AI, smart home, and many other market applications.
KEY FEATURES
- Development kit Prophesee GenX320 module and interface for STM32 devices with S-Mount lens or GenX320 CM2 compact module
- The GenX320 sensor is connected through the STM32 DCMI parallel interface
- Delivered with an application to visualize events on the 4.3” WQVGA TFT LCD programmed in Flash.
SUPPORTED SENSORS
- GenX320 (320x320px) (Sensor board with C-mount optics)
- GenX320 (320x320px) CM2 (Flex Optical Module with 104° DFoV f/2.4 M6 lens)
SUPPORT
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
ADVANCED TOOLKIT
Complementary access to an advanced set of tools composed of a support portal, drivers, open-source platform, SDK, tutorials, reference data and much more.
We are sharing an advanced toolkit so you can start developing your own vision.
THE MOST COMPREHENSIVE EVENT-BASED VISION SOFTWARE SUITE
64 algorithms, 105 code samples and 17 tutorials in total to let you evaluate and design your own Metavision product.
SUPPORT RESOURCES
With USB EVK purchase, get access to 2 hours of onboarding support within the first 2 months, as well as our privileged Knowledge Center, including over 110 articles, application notes, in-depth technology discovery material and step-by-step guides.
OPEN SOURCE ARCHITECTURE
Metavision SDK is based on an open source architecture, unlocking full interoperability between our software and hardware devices and enabling a fast-growing Event-Based community.
EXTENSIVE DOCUMENTATION
With 300+ pages of regularly updated content on docs.prophesee.ai, programming guides, reference data, detailed recommendations, get a head start on your application development.
