EVENT-BASED VISION ENABLES HIGH SPEED DETECTION AND TRACKING IN MICROFLUIDIC ANALYSIS

Up to 1.54 m/s

fluid velocity

Down to 1µm

 size of particle detected

20k fps

 time resolution equivalent

Aided by Prophesee’s Metavision sensing technologies, researchers at the University of Glasgow, Heriot-Watt University and University of Strathclyde have discovered ways to leverage Event-Based Vision’s high-speed particle detection capabilities to perform microfluidic analysis. While significant improvements have been made to the tools needed for these types of studies, current imaging methods are limited in effectiveness and practicality for several reasons. In a recent study, researchers found Event-Based Vision could offer a cost-effective solution to the research community

Current imaging methods for particle image velocimetry often require expensive high-speed cameras with powerful illuminating sources, thus potentially limiting accessibility. Event-based cameras have the unique capacity to detect light intensity changes asynchronously and to record spatial and temporal information with low latency, low power and high dynamic range.”
Lab Chip, 2020, 20, 3024

MICRO PARTICLE TRACKING IN A MICROFLUIDIC DEVICE USING AN EVENT CAMERA

The study also found significant KPI improvements including enabling the profile of particles down to 1 µm, and a wide range of fluid velocities, up to 1.54 m/s. Enabled with the precision and efficiency (equivalent to 20,000 fps conventional cameras) of Prophesee’s Metavision platform, researchers can better understand the behavior of fluids and particles in microscopic channels.

The researchers hope the applications demonstrated will create new opportunities for innovation in industrial, medical, and life-science use cases.

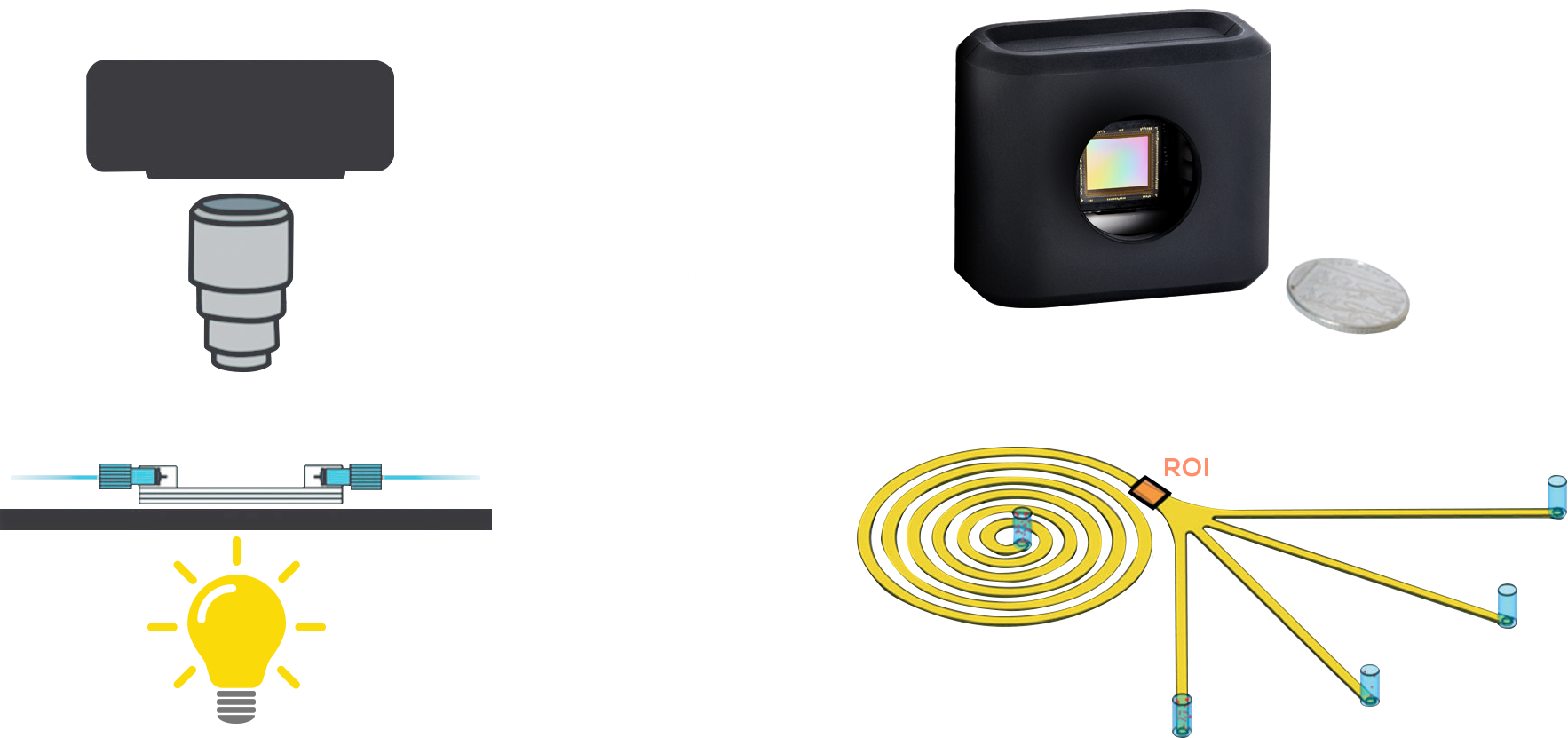

Imaging in inertial focusing devices

A. Optical setup. B. Prophesee Event-Based Camera. C. Spiral channel used for focusing experiments recorded in the region of interest.
